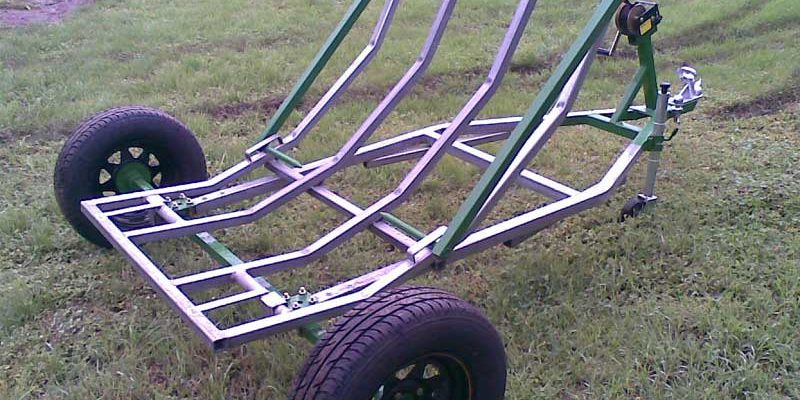

Bale Buggy
Bale Buggy
The Bale Buggy is a low cost machine that can transport and feed out one round bale of hay or silage. The whole bale can be unrolled or only what is required in a paddock.
The Bale Buggy can be used with a car, ute or ATV.
This simple machine enables the farmer the ability to be able to feed hay out at a location that could be a distance from their property. The hobby farmer also can take advantage of this machine too and be able to handle large round bales of hay or silage.
Features Include:
- Heavy duty 3mm rhs duragal frame
- High quality winch
- New tyres on hq hubs
- Low pivot point for cradle, for ease of loading
- Jockey wheel for ease of hitching on machine
- One person operation

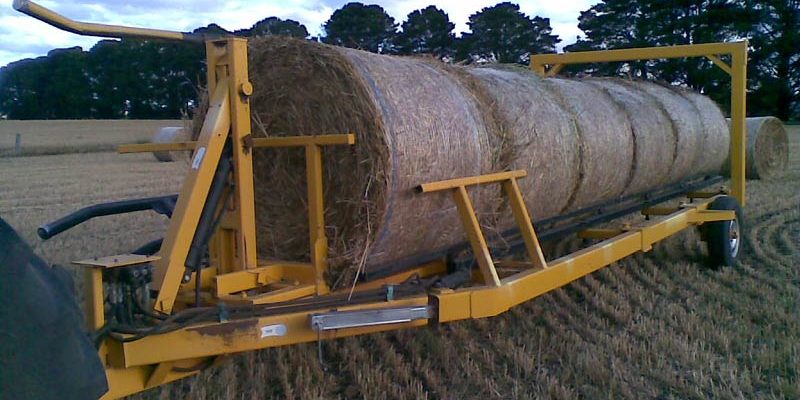

Round Bale Collector
Round Bale Collectors
The round bale collector is designed to feed a round bale wrapper. It is able to carry 6 4×4 bales of silage to a wrapper and keep up with it. The main issue with wrappers is the ability to keep bales in front of the wrapper to be wrapped. The bale collector leaves the bales in a straight row so that the wrapper can continually wrap bales in a long giving the contractor/farmer a higher output.
The round bale collector when carrying grass 5×4 round bales can carry seven bales at one time, and a major advantage of this machine is that it rotates the bales as it collects them leaving the bales with their flat spot at the top when left in a row.
The round bale collector takes about 2.5 minutes to load and around 30 seconds to unload. This machine is a simple one man operation and enables the farmer/contractor to clear a large quantity of bales of a paddock without the need for a truck and two tractors and maybe more men.
Simple and Effective Design
The machine itself is simple in design as it picks up a round bale loads it onto the machine and then pushes the bale back onto two rails. This process continues until the machine is fully loaded. Once the machine is at the area for unloading, the rails hydraulically move to each side of the machine and the bales fall down in a tight row. The bale on the front of the round bale collector is simply pushed back against the unloaded bales. With the tractor in neutral the machine and tractor move forward as the bale goes backwards and unloads.
The time that is saved with the round bale collector speaks for itself, whether feeding a silage wrapper or collecting hay bales of a paddock.

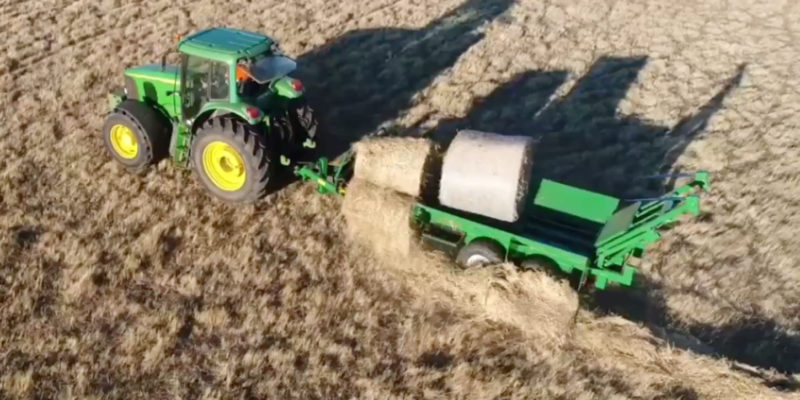

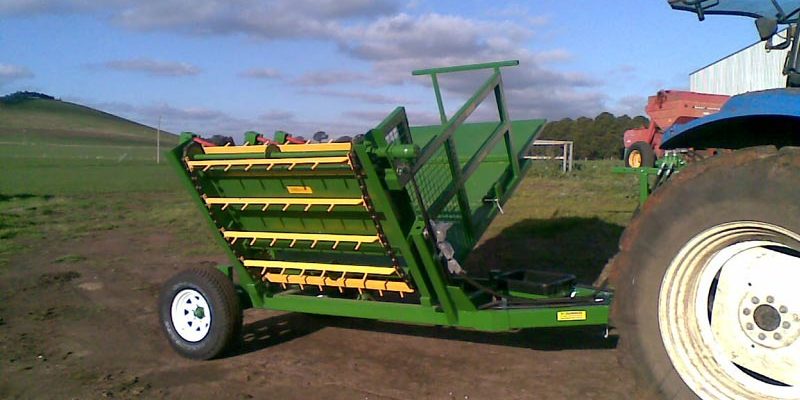

Multi Feeder
Multi Feeder
The Elsworth Multi Feeder is designed for round and square bales.
Features Include:
- 6mm RHS one piece chassis for superior strength.
- Heavy duty 3″ long link 6000 pound conveyor chain Australian made.
- High quality hydraulic pump.
- Carries 2 bales, 1 in chamber and 1 on forks.
- Has a twine box to store twine or wrap.
- All pivot points are greasable.
- Adjustable towing hitch for varying drawbar heights.
- Has hinging forks with a low hinging point for safety when reversing backwards to spear a bale.
- Has an extra position to move the spear out for a big square bale.
- Can feed either square or round bales.
- Can feed up to an 8ft square bale.
Specifications
Weight: 1.2 tonne plus
Drive: Heavy duty hydraulic motor
Wheel Equipment: 3 tonne axle Landcruiser sunraysia rims
Transport Width: Under 8ft
Chassis: One piece 6mm RHS
Example Price
Multi Feeder: $17,500.00 +. gst ex Smeaton

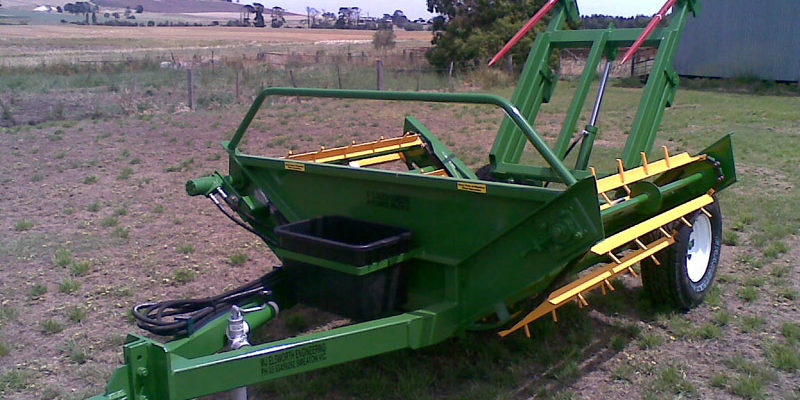

Hydraulic Twin Bale Feeder
Hydraulic Twin Bale Feeder
The Elsworth Hydraulic Twin Bale Feeder comes in two sizes, 4’ and 5’ models.
- The 4’ model will feed any 4’ wide bale, 4’ high to 6’ high.
- The twin bale feeder can feed out silage through to tight oaten rolls.
- The twin bale feeder has a heavy duty construction from Australian steel.
- The chassis is made from 125mm x 75mm x 6mm RHS.
- A flat floor enables tight silage/oaten rolls to easily unroll and start feeding out.
- The deep 20” chamber prevents rolls from coming out of the feeder when feeding on hilly terrain.
- Feeder shafts are 11/2 shaft with heavy duty 12mm sprockets.
- Feed bars are made from 50mm x 50mm x 8mm angle iron with heavy duty 12mm pins to tear
- out the hay.
- The hydraulic motor is a high quality motor.
- Two bales can be carried, one in the chamber and one on the hinging spears.
- The axles are three tonne capacity with slimline landcruiser hubs.
- Feeder chain is 3” long link 6000lb conveyor chain made in Australia, bars are bolted on not welded to chain.
- The Standard twin bale feeder comes with dual hoses, but an isolator valve is available at no extra charge for tractors with single remotes.
- Available powerpacks – 13hp Honda
Specifications
Weight: 1 tonne plus
Drive: Heavy duty hydraulic motor
Wheel Equipment: 3 tonne axle Landcruiser sunraysia rims
Transport Width: Under 8ft
Chassis: 125mm x 75mm x 6mm RHS
Example Price
4′ Twin Bale Feeder $13,000 + gst Smeaton
Trailing feeders now have:
- Rear tail lights
- Hydraulic hose holders
- Instruction holder
- Jack holder
- Mudguards
Optionals:
- Sliding door
